USA standard/AASHTO M180 guardrail

USA standard/AASHTO M180 series highway guardrails are manufactured

features of high durability and maximum strength to meet all requirements i

AASHTO M180-12 specification.

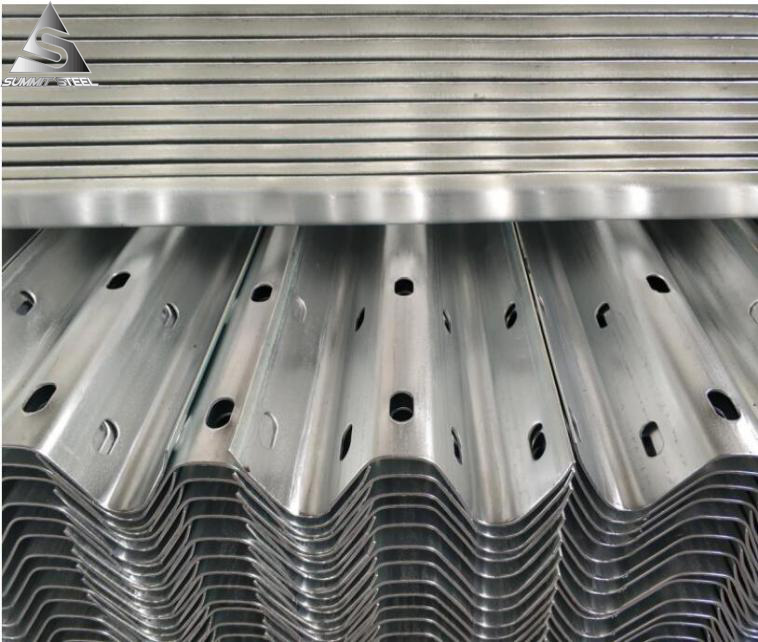

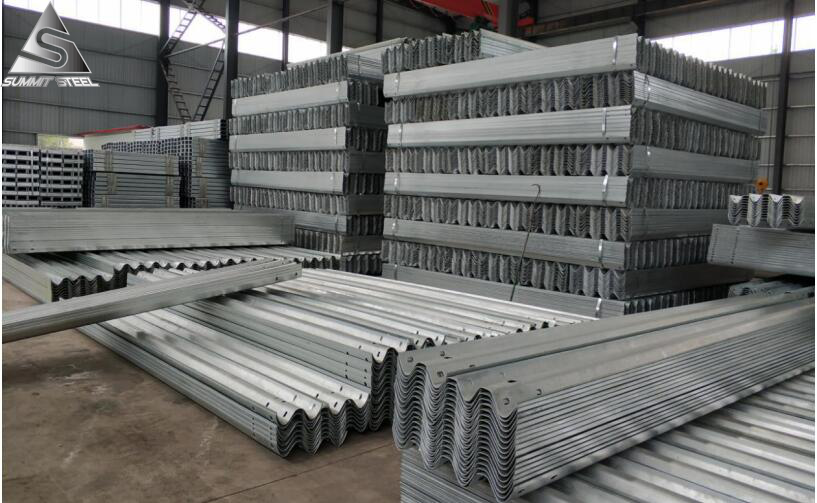

W beam effective length

3810/3000mm*310mm*83mm or customized

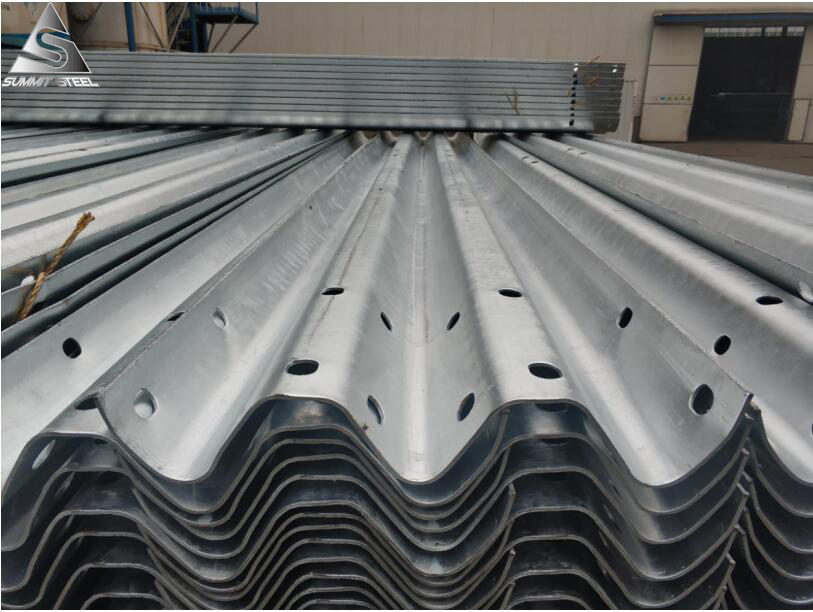

Thrie beam effective length

3810/3000mm*510mm*83mm or customized

Material

Q355, S355JR, A572 Gr. 50

Base metal nominal thickness

2.67mm (A), 3.43mm (B) or customized

Surface Treatment

Hot dip galvanized as per ASTM A653



Zinc coating thickness

Type I: 550g/㎡,Type II: 1100g/㎡
total mass on two sides.

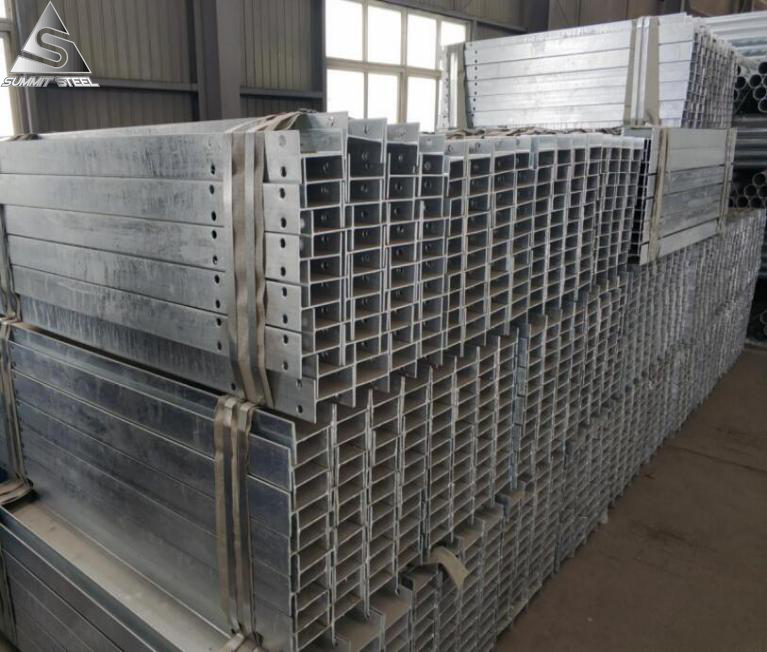

H post

W6*9, H13.5kg/m* L

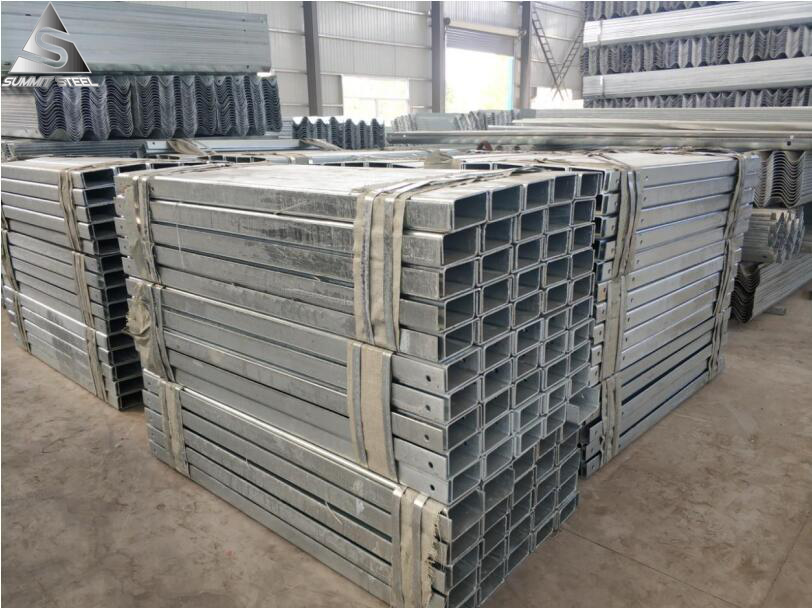

U post

U178*76*6mm* L, U150*75*5mm* L

Standards

AASHTO M180, ASTM A653
